Fontana Architectural Touchless Bathroom Faucets
Explore Fontana touchless faucet designs built for commercial restrooms, hospitality facilities, office buildings, airports, healthcare environments, and high-traffic public spaces where hands-free hygiene, durable finishes, and reliable sensor activation matter.
Design Intent and Commercial Performance

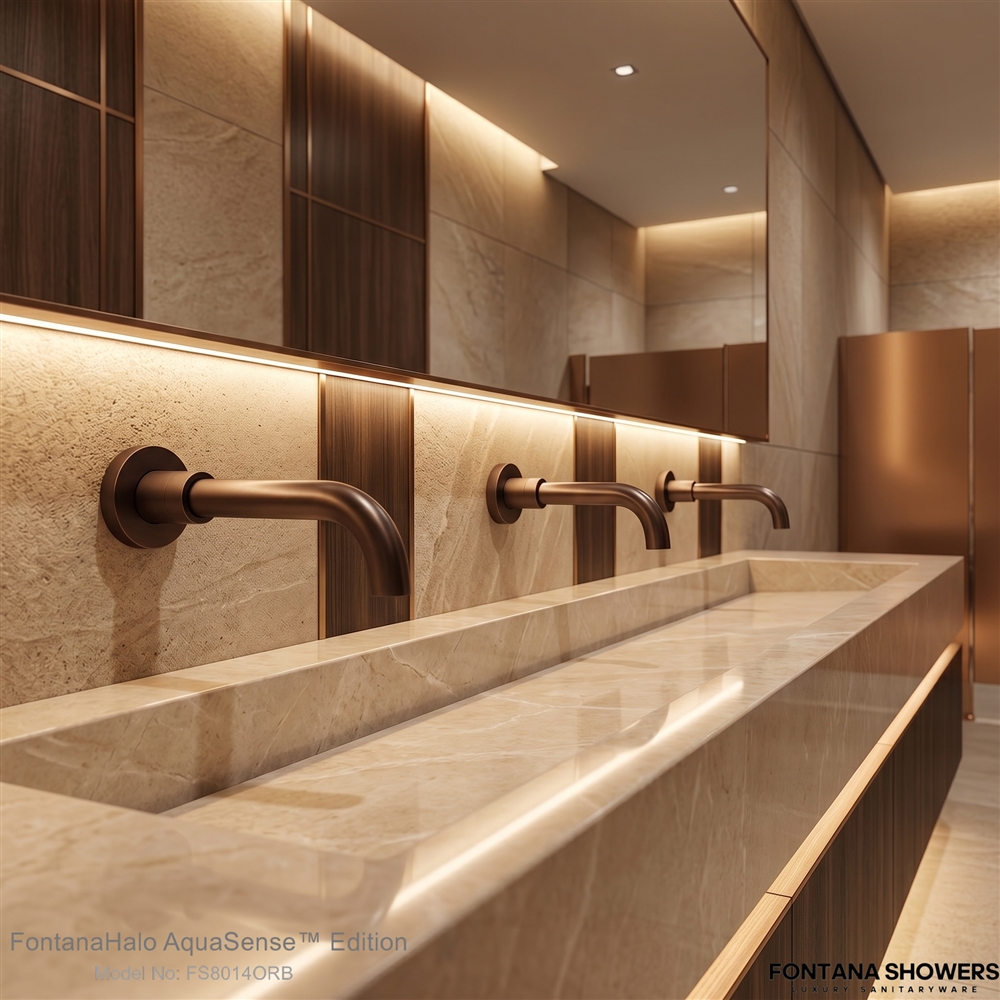

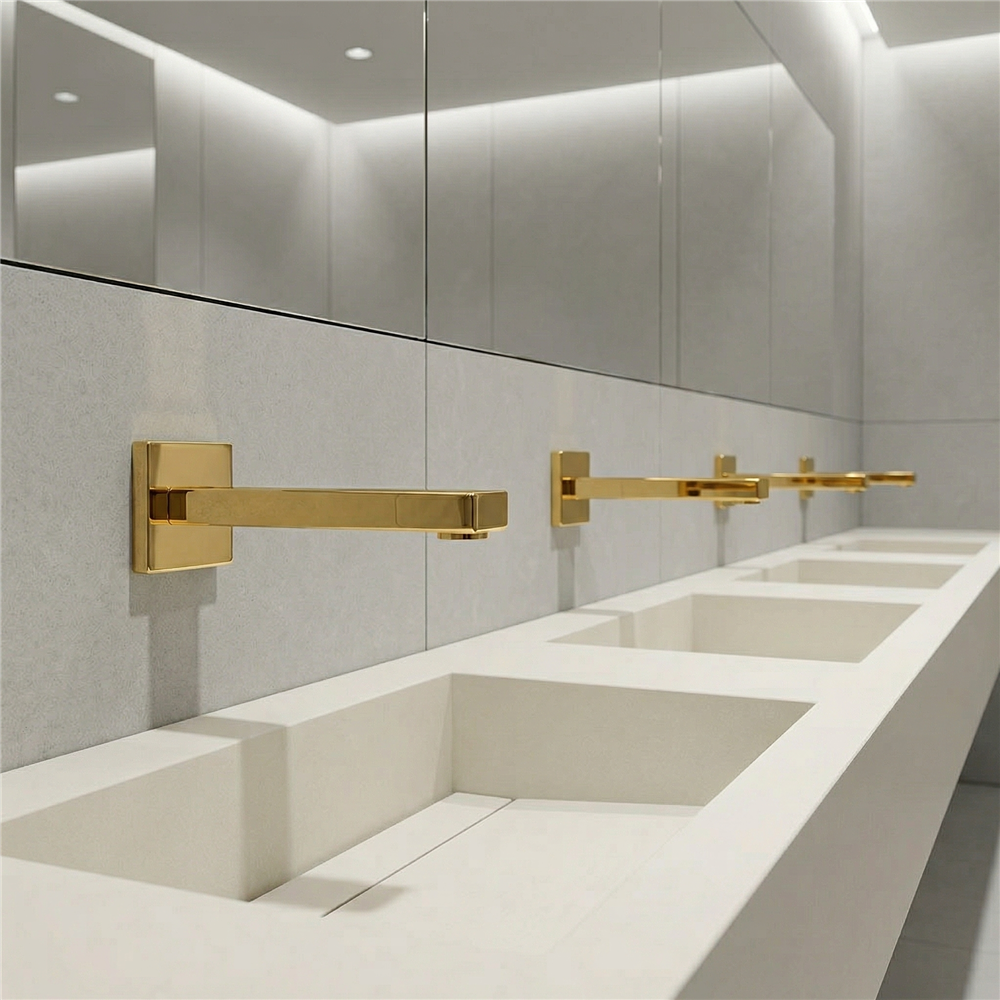

The Fontana architectural touchless faucets shown above should be evaluated as coordinated plumbing-electronic systems rather than isolated decorative fixtures. In airport, hospitality, healthcare, workplace, and institutional projects, the design team should review sensor geometry, hydraulic performance, basin compatibility, electrical requirements, finish durability, service access, and lifecycle documentation before final approval.
For broader commercial programs, related architectural touchless faucets, wall-mounted touchless faucets, and BathSelect commercial sensor faucets can be reviewed as part of a coordinated restroom-fixture schedule.
Specification Priorities
Sensor Reliability
Confirm sensing range, response consistency, false-trigger resistance, timeout logic, and performance under final lighting and reflective conditions.
Basin Compatibility
Coordinate spout projection, outlet elevation, drain location, basin depth, rim profile, and expected handwashing zone.
Power Strategy
Select AC, battery, or hybrid power according to traffic levels, electrical rough-in, maintenance staffing, and required uptime.
Service Access
Keep solenoids, filters, batteries, transformers, control boxes, aerators, and isolation valves accessible after occupancy.
Finish Durability
Coordinate oil-rubbed bronze or brushed gold with accessories, cleaning protocols, replacement parts, and project finish schedules.
Water Efficiency
Match aerator flow, stream pattern, automatic shutoff, operating pressure, and conservation goals to the selected lavatory.
Architectural Specification Matrix
| Specification Item | Architect / Engineer Review | Contractor Verification | Facility Management Requirement |
|---|---|---|---|
| Sensor field | Coordinate with basin, counter, mirror, backsplash, lighting, and accessible approach. | Calibrate after final finishes and accessories are installed. | Record final settings and troubleshooting procedure. |
| Spout geometry | Align outlet with drain zone and intended handwashing position. | Verify actual mounting dimensions during mockup. | Monitor splash and aerator condition during service. |
| Power source | Define AC, battery, or hybrid configuration and electrical responsibility. | Provide accessible wiring, transformer, or battery enclosure. | Maintain battery schedules and replacement records where applicable. |
| Water delivery | Review operating pressure, flow, aerator type, and water-efficiency target. | Flush supply lines and verify filters, flow, leaks, and shutoff. | Clean strainers and aerators at planned intervals. |
| Finish system | Coordinate faucet finish with drains, accessories, hardware, and partitions. | Protect during construction and avoid incompatible cleaners. | Use approved cleaning materials and document finish-care procedures. |
| Service access | Show access zones, removable panels, and isolation-valve locations. | Confirm component replacement without demolition. | Maintain spare parts and service documentation. |
Airports
High passenger volume, extended operating hours, repeatable fixture standards, and rapid maintenance access.
Hospitality
Premium finish integration, consistent guest experience, low-contact operation, and room-type standardization.
Healthcare
Reduced shared touchpoints, controlled water delivery, serviceable components, and cleaning compatibility.
Workplaces
Modern employee restrooms, visitor-facing amenities, efficient water use, and coordinated interior design.
Education
Durable public use, repeatable installations, simplified maintenance, and clear replacement-part schedules.
Civic Facilities
Long lifecycle expectations, accessibility, water-efficiency goals, and auditable maintenance procedures.
Commercial Design Workflow
A structured delivery sequence reduces field conflicts and improves long-term performance across multi-fixture restroom programs.
Architect and MEP Checklist
Technical FAQs
How should sensor range be coordinated with the selected basin?
Review spout projection, drain location, basin depth, rim profile, backsplash reflectance, and the accessible user position. Final calibration should occur after lighting, mirrors, counters, and finishes are installed.
When is hardwired power preferable to battery operation?
Hardwired power is generally preferable in high-volume airport, healthcare, and public restrooms where continuous operation and reduced battery labor are priorities.
How should false activation be tested?
Test pass-by movement, adjacent-station use, reflective objects, cleaning activity, empty-basin conditions, lighting changes, and simultaneous operation.
Why must service access be shown in the drawings?
Control boxes, transformers, batteries, solenoids, filters, aerators, and isolation valves must remain serviceable without removing countertops, stone panels, or permanent millwork.
How does water quality affect long-term performance?
Sediment, hardness, scale, and construction debris can obstruct aerators, strainers, and solenoid passages. Supply flushing and accessible filtration should be included in the specification.
How should oil-rubbed bronze and brushed gold finishes be maintained?
Use soft cloths and manufacturer-approved neutral cleaners. Avoid abrasive pads, aggressive acids, strong bleach, ammonia mixtures, and metal-polishing compounds.
What should be included in the product submittal?
Include dimensions, mounting type, rough-in, operating pressure, flow rate, power requirements, sensor adjustment method, service parts, finish data, warranty, and cleaning guidance.
What commissioning records should be retained?
Record sensor settings, timeout, flow, temperature, power source, control-box location, deficiencies, corrective actions, and final functional-test results.
