LED Gold Shower Systems: Smart Controls, Thermostatic Design & Bathroom Technology
LED gold shower systems combine architectural finish, multi-outlet water delivery, thermostatic control, digital interfaces and—on selected models—lighting, music or connected functions. For architects, interior designers and MEP teams, the strongest specification begins with hydraulic demand, valve architecture, power, waterproofing and service access before the visible gold finish is approved.
LED Gold Shower Systems: Architecture at a Glance
LED gold shower systems should be reviewed as coordinated assemblies rather than isolated decorative fixtures. The examples below show how digital controls, thermostatic mixing, multi-outlet water delivery and gold finish integration can change the hydraulic, electrical and architectural requirements of the shower enclosure.
What Makes an LED Shower System “Smart”?
“Smart” is not a single engineering category. Depending on the model, the term may describe LED lighting, a temperature display, digital outlet selection, remote operation, music or other electronic controls. The specification should therefore identify each function separately and verify how it is powered, controlled and serviced.
LED Feedback Is Not Temperature Regulation
LED lighting and thermostatic regulation perform different functions. Lighting can be decorative or provide visual feedback, while the thermostatic or compensating valve controls the mixed-water condition. Architects should not treat color-changing LEDs as a substitute for model-specific temperature-control documentation.

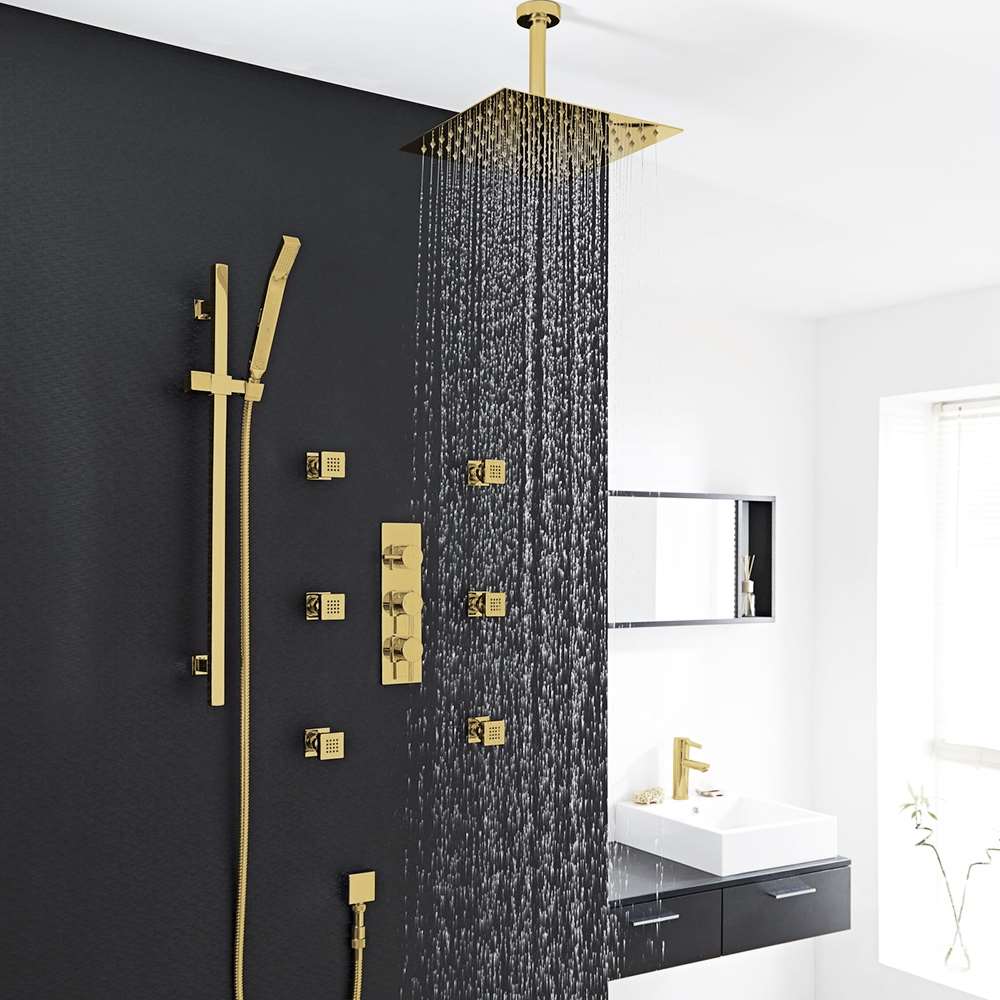

Square Image Frames: Hydraulic and Control Coordination
Multi-function shower systems should be reviewed as integrated plumbing and control assemblies. The visual finish is only one layer; supply pressure, outlet demand, valve capacity, drainage, electrical requirements and maintenance access can determine whether the installation performs as intended.
Hydraulic Design Comes Before Showerhead Size
A large ceiling panel does not by itself establish usable performance. The design team should confirm dynamic pressure, supply sizing, individual outlet flow, valve capacity and permitted simultaneous functions. EPA notes that WaterSense-labeled showerheads use no more than 2.0 gpm and must also satisfy performance criteria for spray force, coverage and pressure compensation.
EPA WaterSense — Showerheads →
- Verify static and dynamic supply pressure
- Confirm each outlet’s published flow
- Check which functions may operate together
- Coordinate hot-water generation and pipe sizing
- Size drainage for the highest expected discharge

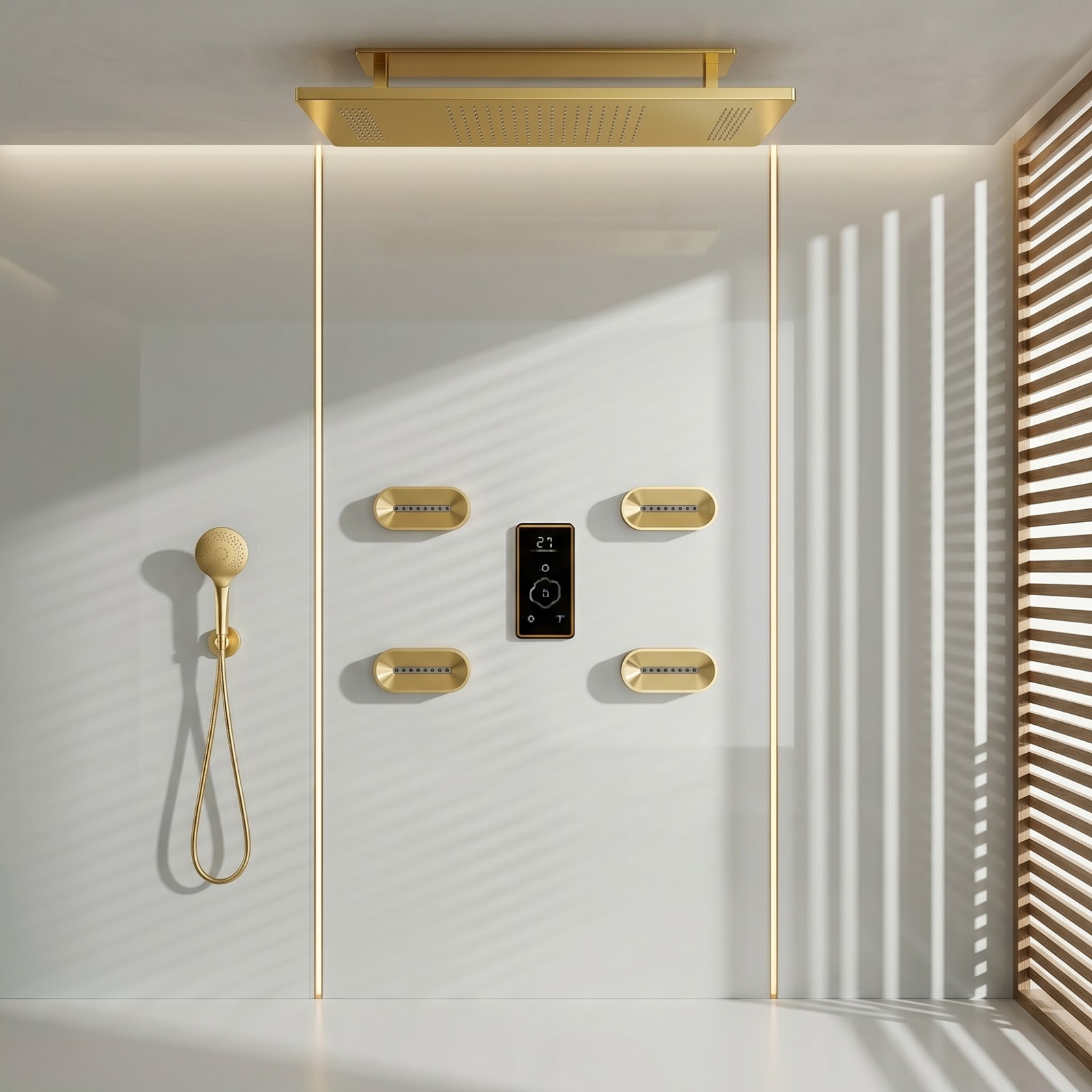

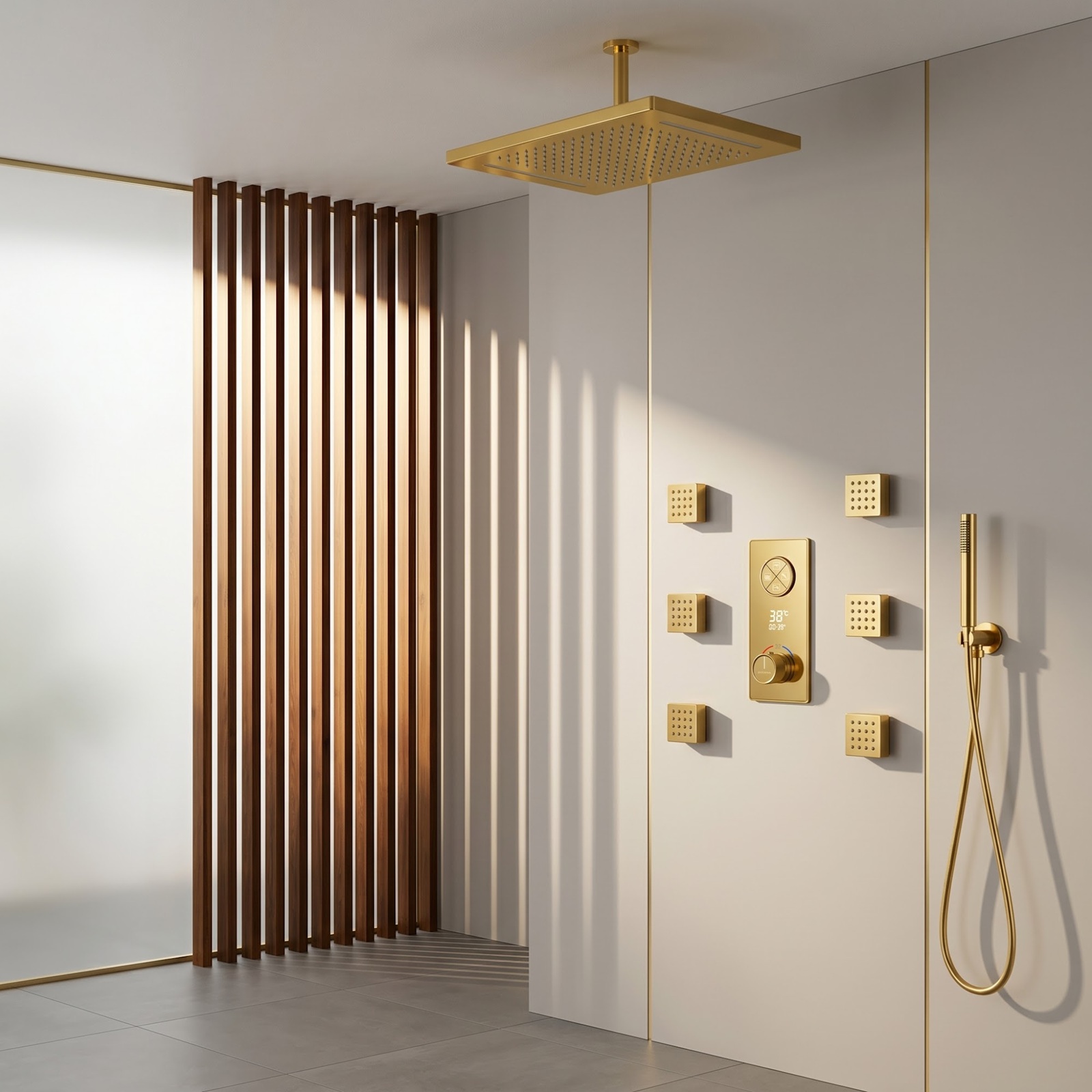

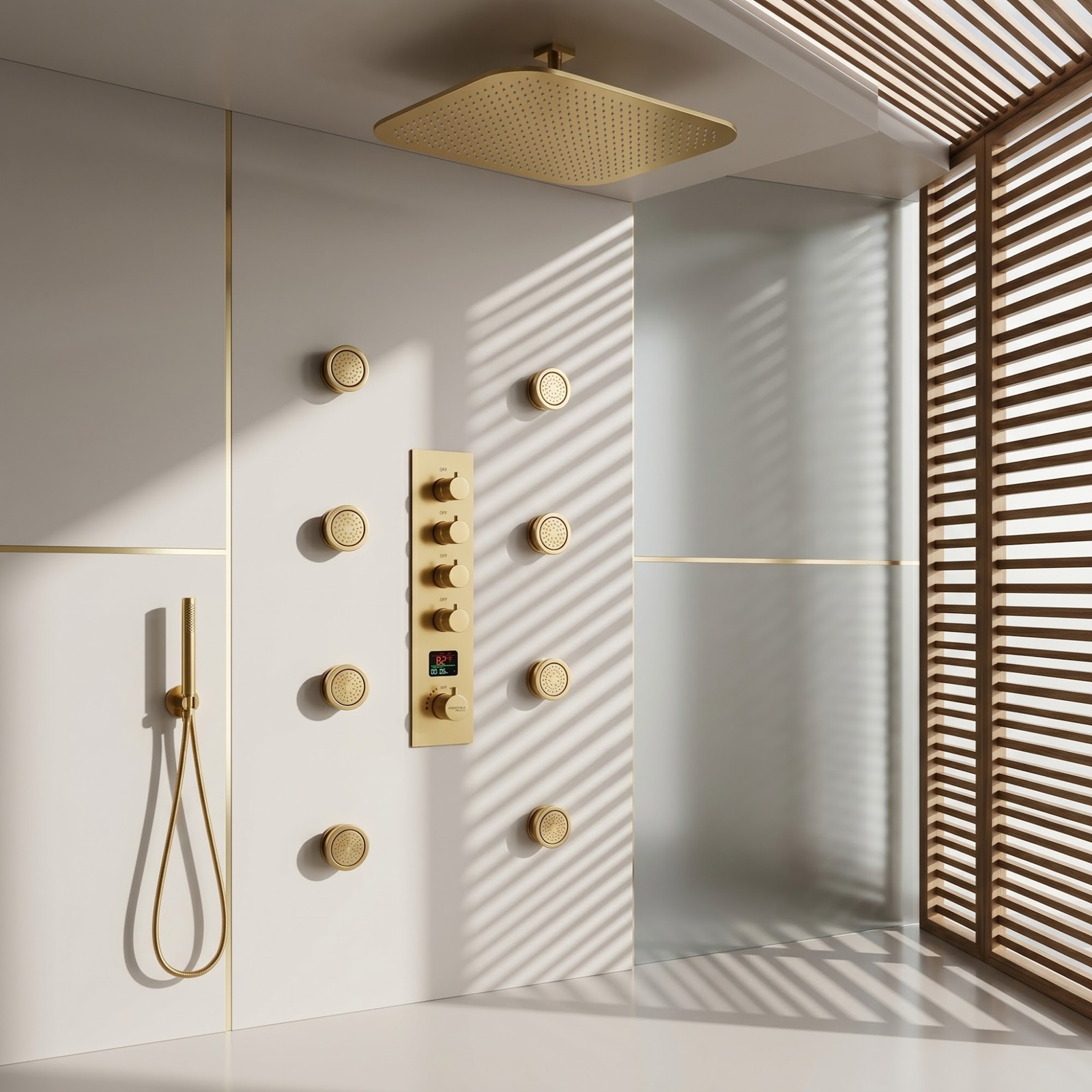

Thermostatic and Compensating Valve Architecture
The valve should be reviewed as the hydraulic control center of the shower system. Its inlet requirements, outlet count, flow capacity, temperature-control method and service location should be verified before the finished-wall assembly is locked in.
ASME A112.18.1/CSA B125.1 — Plumbing Supply Fittings →
- Temperature-control strategy
- Valve capacity and outlet configuration
- Finished-wall depth and trim tolerance
- Isolation and service access
- Model-specific installation documentation
LED Gold Shower System Coordination Matrix
Use this matrix during design development and submittal review to identify the concealed requirements that should be resolved before tile, waterproofing and final fixture procurement.
| System | Verify | Coordinate With | Risk if Missed |
|---|---|---|---|
| Hydraulics | Dynamic pressure, outlet flow, simultaneous demand | Supply piping, valve, hot-water source | Weak or uneven shower performance |
| Thermostatic Valve | Capacity, control type, inlet conditions | Hot/cold supply and outlet functions | Temperature instability or restricted flow |
| LED / Digital | Power method, controller, display, control logic | Electrical rough-in and service cavity | Late electrical work or inaccessible controls |
| Ceiling Panel | Panel size, support, cavity clearance | Structure, plumbing, lighting and HVAC | Installation conflict above the ceiling |
| Waterproofing | All pipe, fixing and control penetrations | Tile, substrate and membrane detailing | Compromised waterproofing continuity |
| Drainage | Highest expected combined discharge | Floor slope, drain and waterproofed area | Ponding or undersized drainage |
| Service Access | Valve, controls, power components, connections | Access panels and adjacent construction | Destructive maintenance later |

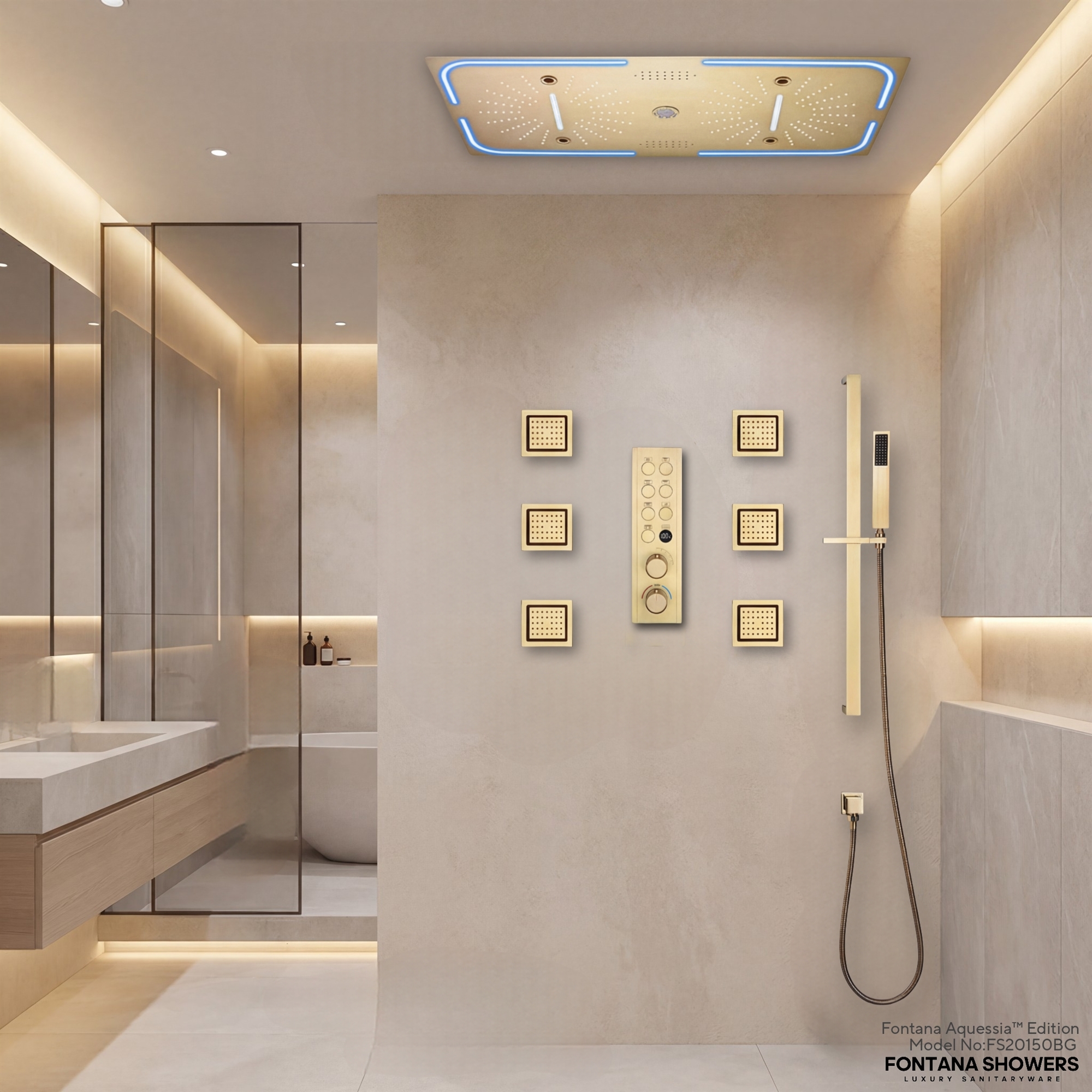

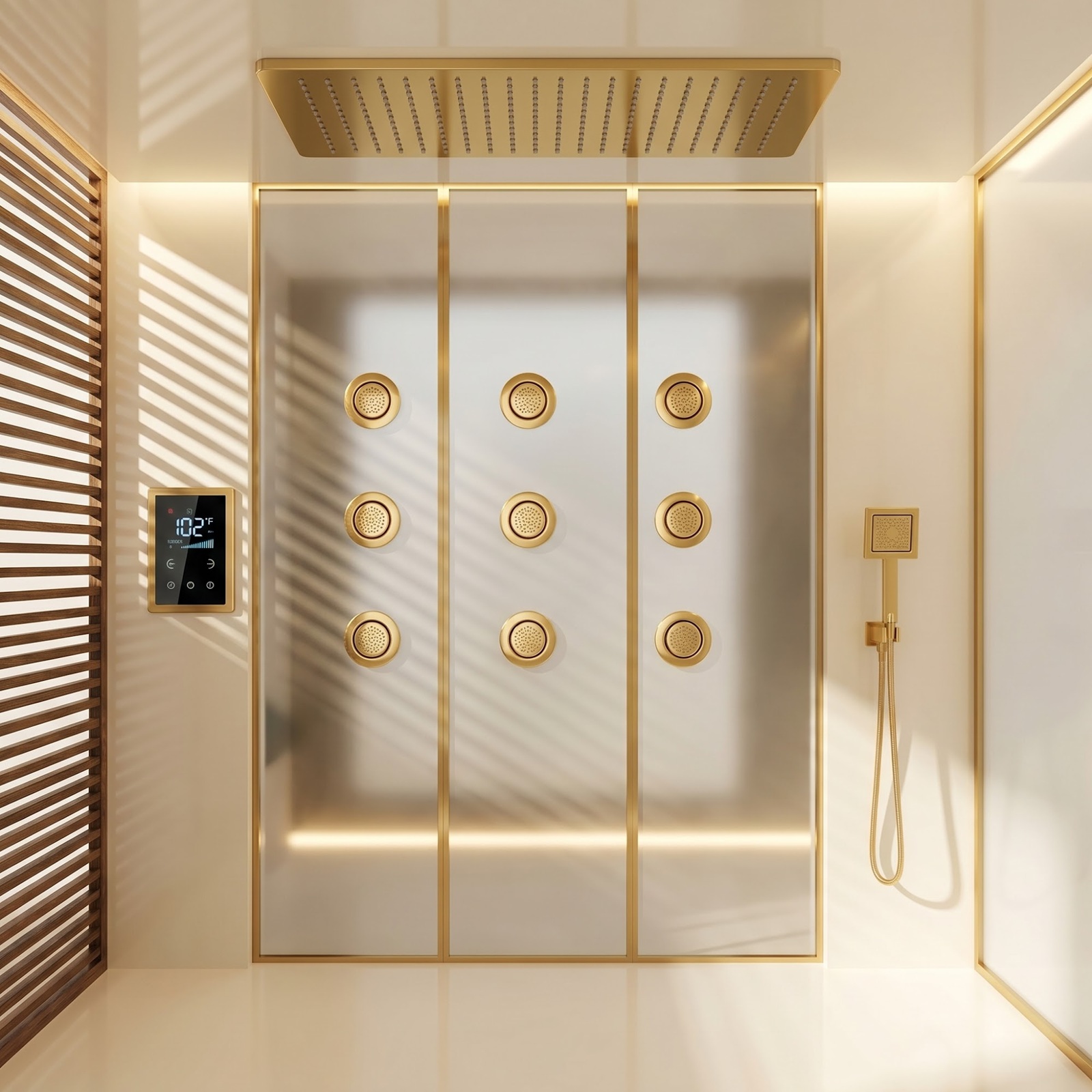

Square Image Frames: Finish, Waterproofing and Installation
Gold finish should be coordinated with the complete architectural assembly. Shower controls, body jets, hand shower, hoses, outlets and ceiling panels should read as one visible family while concealed components remain accessible and waterproofed.

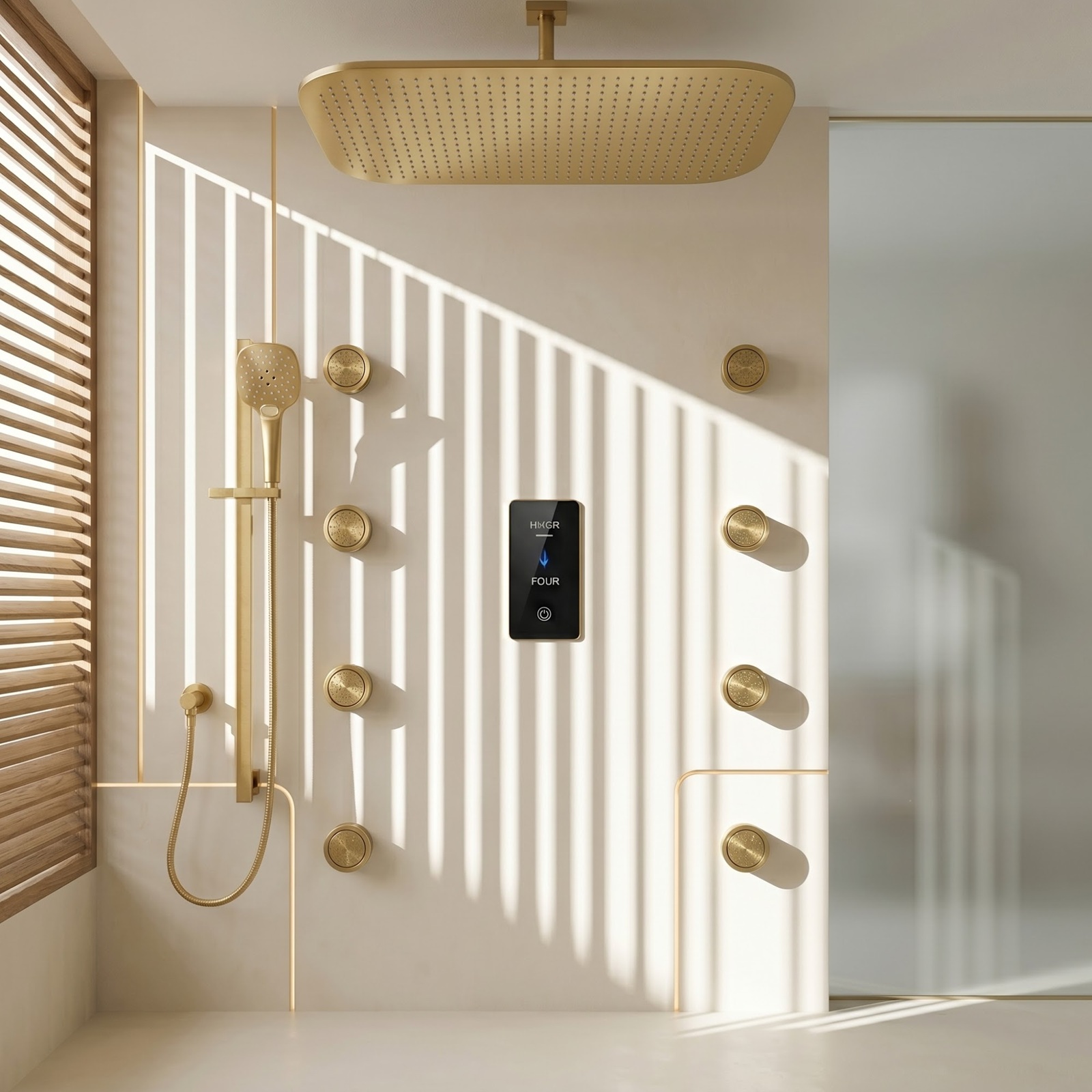

Digital Controls Change the Wall Composition
Digital controls can reduce the visual dominance of conventional handles, but they may increase hidden coordination. The project team should establish controller depth, power requirements, cable routing, service access and the relationship between the digital interface and concealed valve before the wall build-up is finalized.
- Controller and transformer location
- Wet-area electrical coordination
- Wall-cavity depth
- Cable routing
- Future replacement access

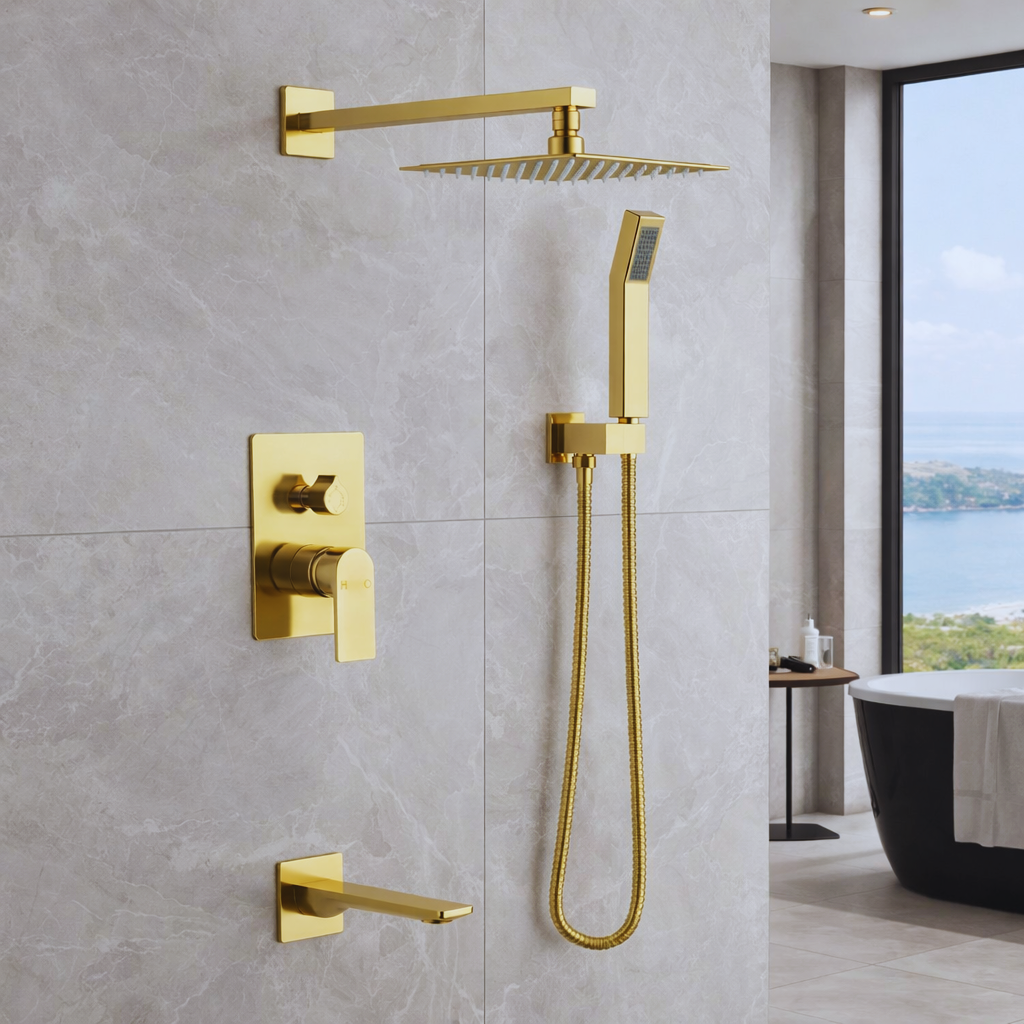

Gold Finish Changes More Than the Visual Language
Brushed and polished gold finishes respond differently to stone, porcelain, dark tile and integrated lighting. The visible finish schedule should include every exposed component, not just the overhead panel. Designers should also review cleaning guidance and replacement-part continuity before using a specialty finish across a large project.
- Overhead shower finish
- Control trim and interface
- Body sprays and wall outlets
- Hand shower and hose
- Cleaning and maintenance requirements
AEC Submittal Review: What Should Be Confirmed?
| Submittal Item | What to Confirm | Primary Reviewer |
|---|---|---|
| Product Data | Model, finish, functions, dimensions and mounting condition | Architect / Interior Designer |
| Hydraulic Data | Pressure range, outlet flows, simultaneous functions and valve capacity | Plumbing Engineer |
| Temperature Control | Thermostatic or compensating valve architecture and inlet conditions | Plumbing Engineer |
| Power + Controls | Power source, controller, transformer and cable routing where applicable | Electrical / MEP |
| Rough-In | Valve depth, ceiling clearance, pipe routing and support | Contractor / MEP |
| Waterproofing | Penetrations, membrane continuity and access opening details | Architect / Waterproofing Trade |
| Maintenance | Service access, replacement components and troubleshooting documentation | Owner / Facility Team |
Specification Verdict
Prioritize Engineering First
Define the water functions, dynamic pressure, valve architecture, supply capacity, drainage and rough-in before approving the final shower configuration.
Finalize the Gold Finish Last
Once the concealed system is coordinated, align the overhead shower, control trim, body jets and hand shower as one architectural finish family.
A successful LED gold shower system is not simply the model with the largest ceiling panel or longest feature list. It is the system whose hydraulics, temperature control, digital architecture, waterproofing, drainage and service access have been coordinated before construction.
LED Gold Shower Systems — Technical FAQ
These questions address the issues architects, interior designers and MEP teams commonly need to resolve before approving a smart or LED shower system.
Do LED shower systems require electricity?
Some do. Powered lighting, digital displays, speakers and connected controls may require electrical coordination. Verify the exact model rather than assuming one common architecture.
Is an LED shower the same as a digital shower?
No. LED describes a lighting function; digital describes the control interface or control architecture. A product may include either feature independently or combine both.
Can rainfall, waterfall and body jets operate together?
Only if the selected valve and product architecture permit it. Confirm simultaneous-function capability, dynamic pressure, supply sizing and drainage before specification.
Does LED color control the water temperature?
Not by itself. Mixed-water control is handled by the valve architecture. LED color may provide visual feedback depending on the product.
Are all LED showerheads WaterSense certified?
No. Certification must be verified for the qualifying showerhead itself. LED or digital functionality does not establish WaterSense certification.
What should be reviewed before waterproofing?
Confirm valve depth, ceiling panel location, pipe routes, power and controls, service access, penetrations, supports and drainage before the waterproofing system is closed.
Gold Shower Systems — LED, Digital, Thermostatic & Smart-Control Experiences
Gold and brushed-gold shower systems increasingly combine architectural finish quality with digital temperature management, LED illumination, thermostatic control, multi-outlet routing and spa-style water delivery. The selections below focus exclusively on gold-finish systems with live Fontana product pages.

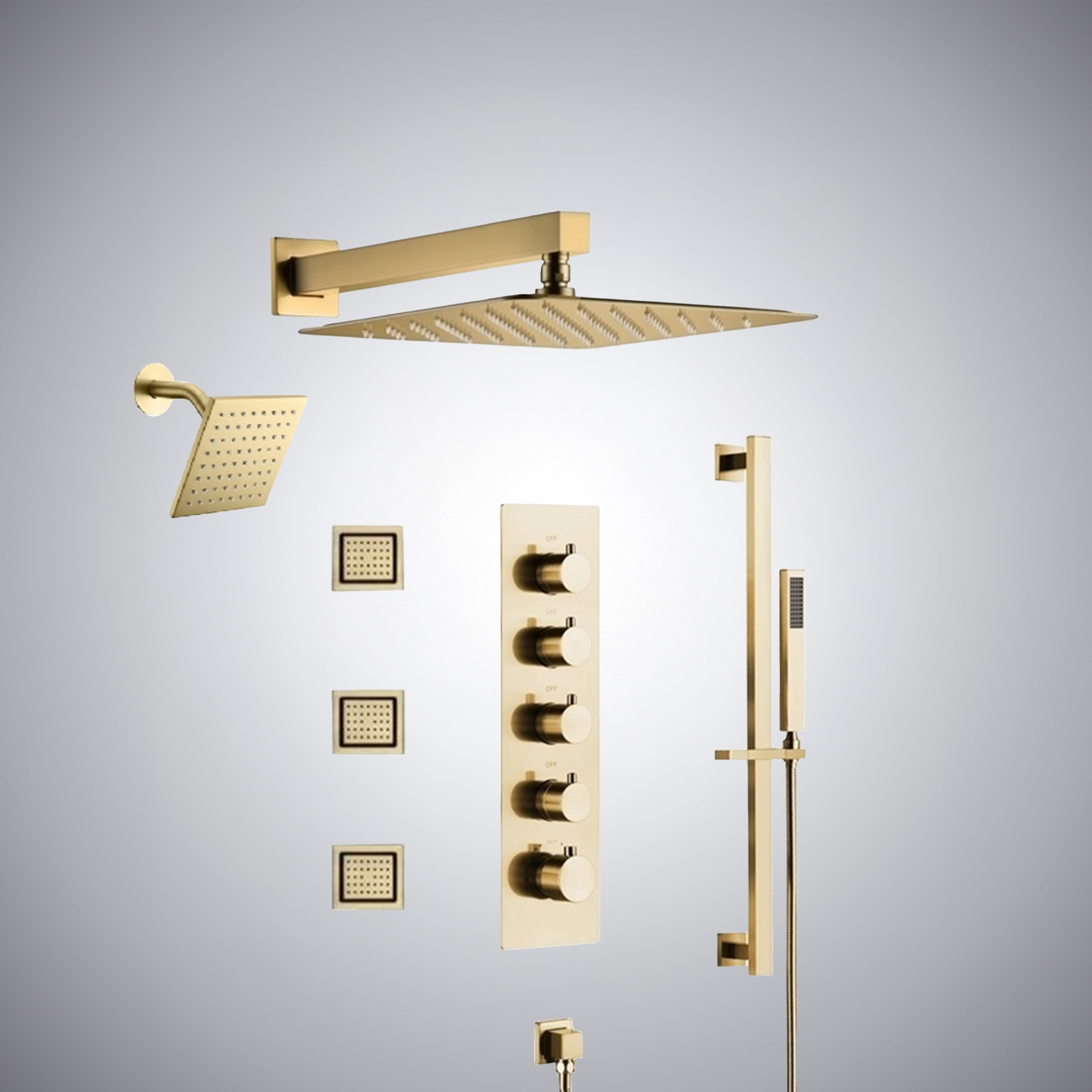

Fontana Lumar Brushed Gold LED Rain Showerhead Set
Balanced Rainfall Output
During high-pressure evaluation, several rainfall channels initially discharged unevenly. After the internal flow routing was adjusted, coverage became balanced and pressure distribution stayed stable through continuous operation. The brushed-gold LED assembly and brass internal structure remained dependable throughout the evaluation.View Gold Shower Set →

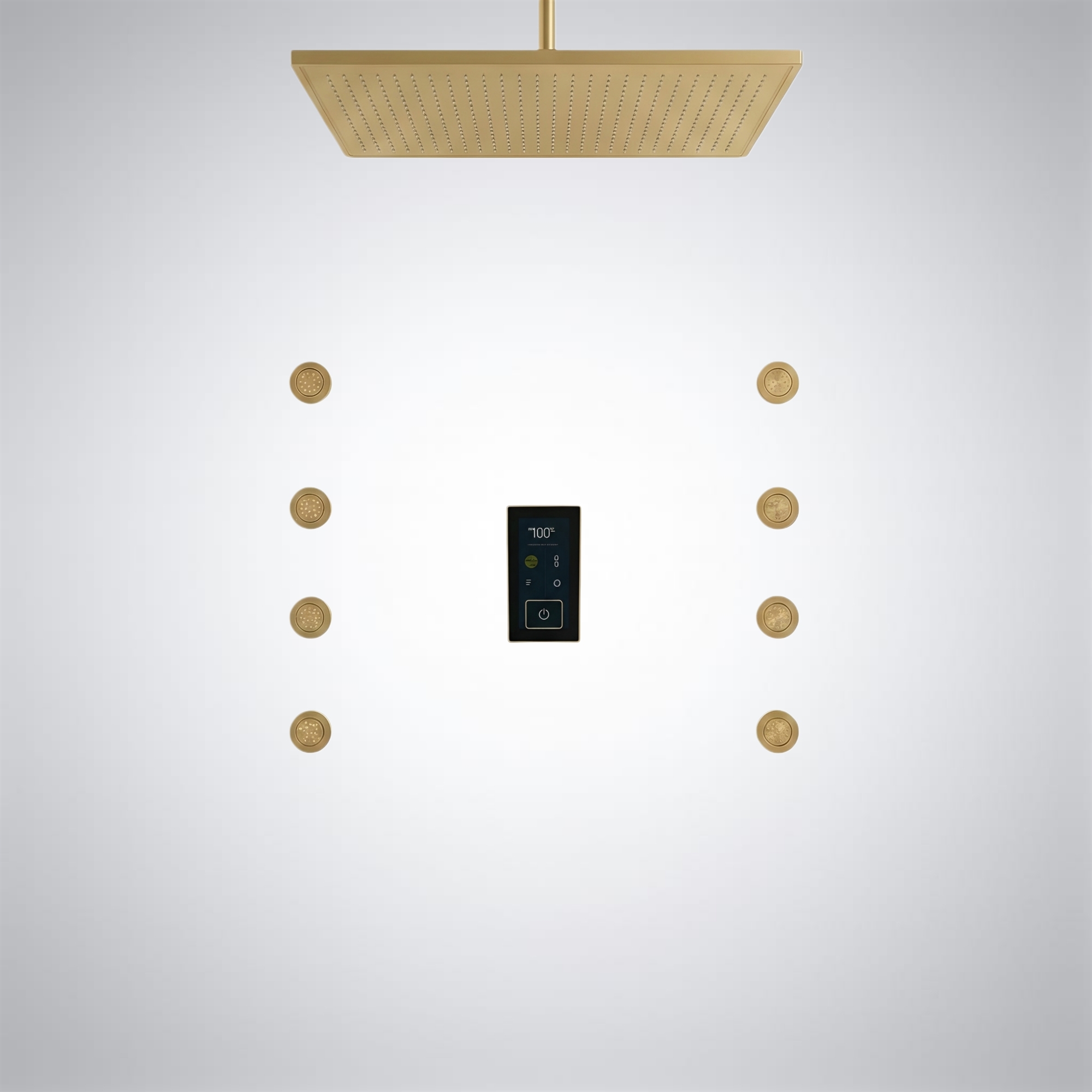

FontanaElan Gold Multifunctional Luxury Shower Set
Digital Control Integration
Our construction team integrated this gold digital system into luxury apartments, where its finish complemented upscale interiors and the digital controls provided precise operation. Installation proceeded efficiently, and technical support helped the installers complete the setup without unnecessary delays.View Gold Shower Set →

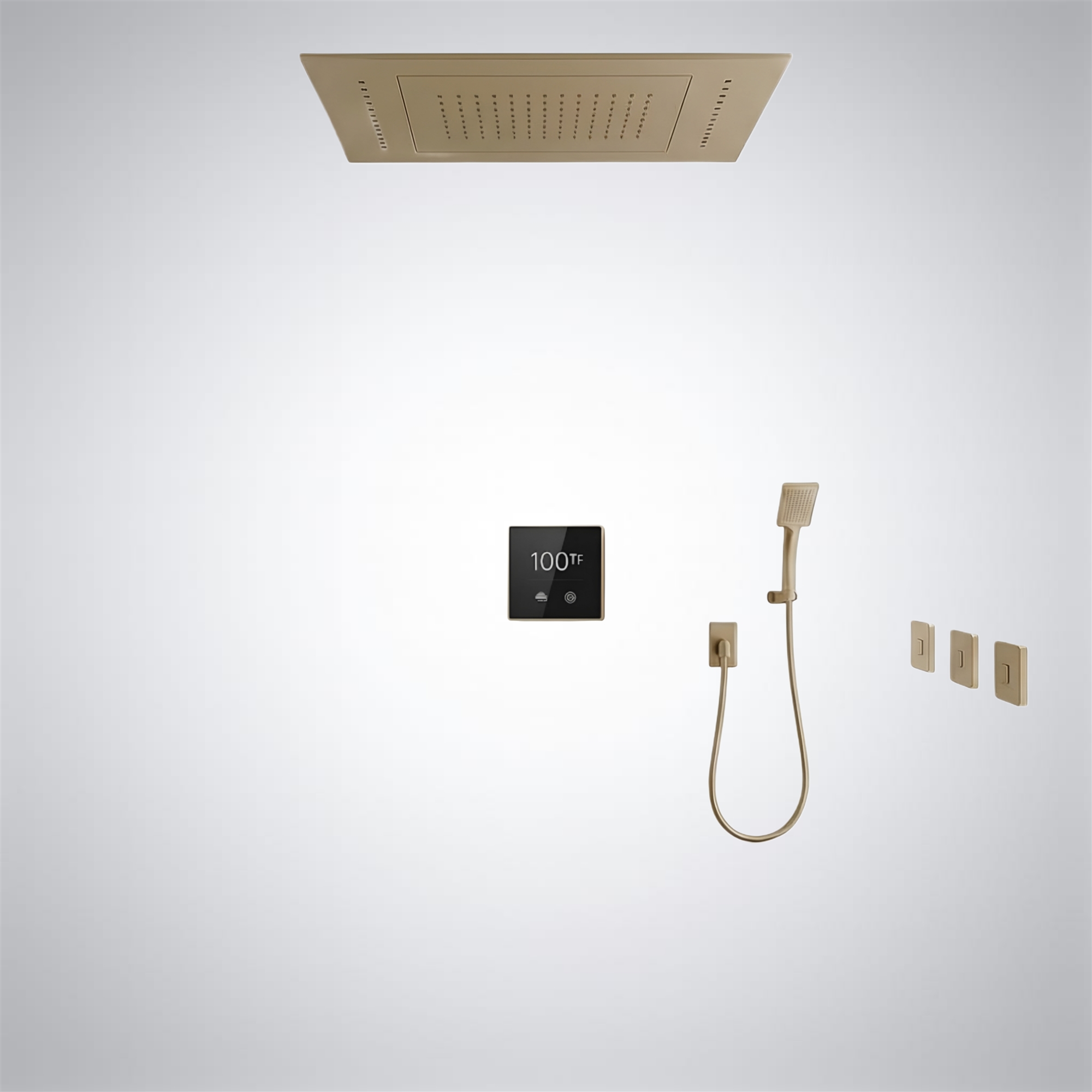

Fontana Barbate Brushed Gold Digital Shower Set
Smooth Premium Installation
Selected for a premium architectural build, this brushed-gold system delivered the refined appearance and functionality the project required. Installation was completed with minimal adjustment, communication from support was clear, and delivery timing helped the project remain on schedule.View Gold Shower Set →

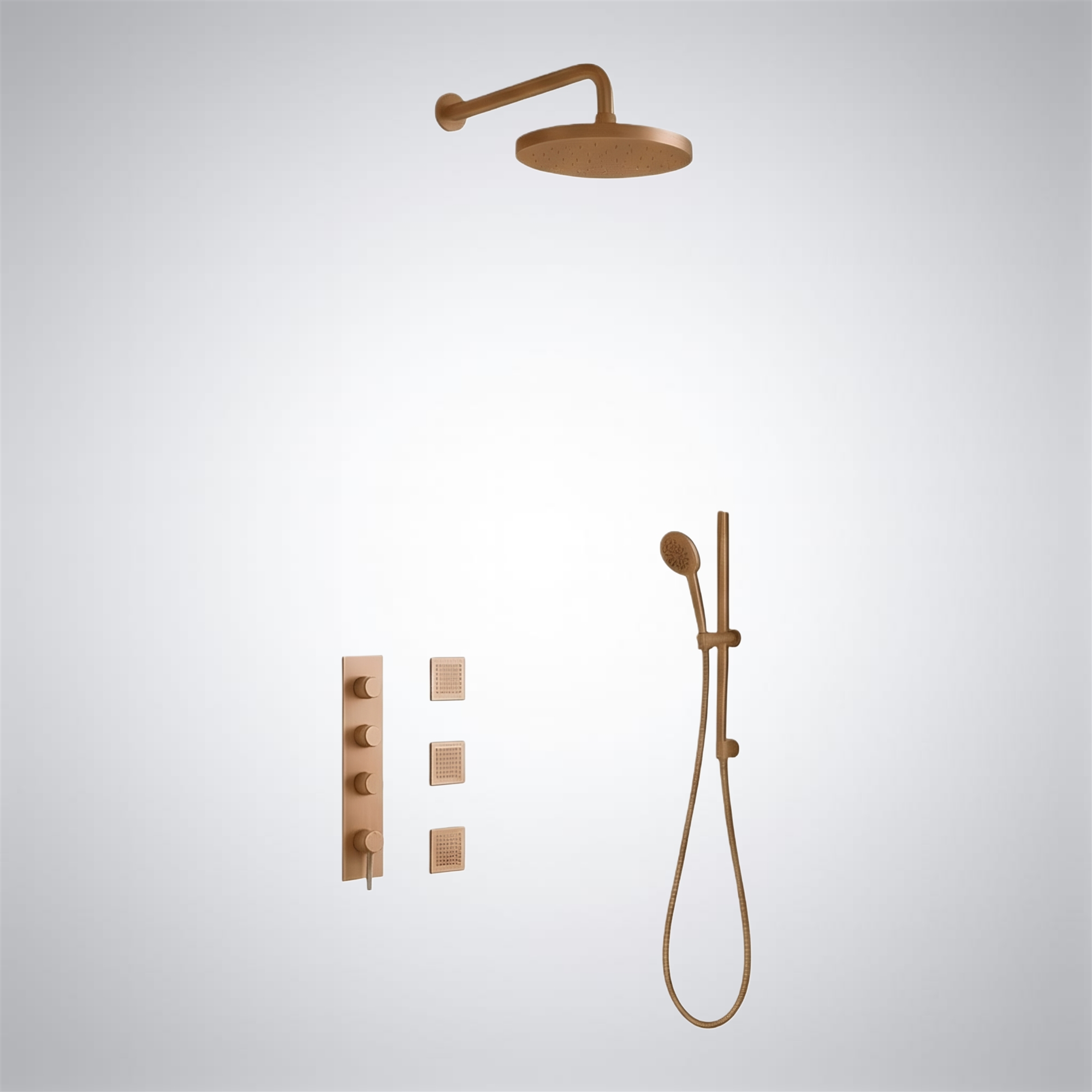

FontanaZenFlow Brushed Gold Spa Shower Set
Balanced Spa Performance
Installed as part of a luxury development, the brushed-gold spa configuration operated smoothly and maintained balanced water distribution across its active functions. The combination of rainfall delivery, handheld operation and body-jet functionality suited the project's upscale bathroom program.View Gold Shower Set →
Fontana Brushed Gold Waterfall & Rainfall Shower Set
Waterfall Pressure Balance
Startup testing exposed a pressure imbalance between the waterfall and rainfall outlets. Recalibrating the internal diverter restored balanced flow, and both functions remained smooth during prolonged operating cycles. The brushed-gold structure and brass routing handled the dual-function demand consistently.View Gold Shower Set →

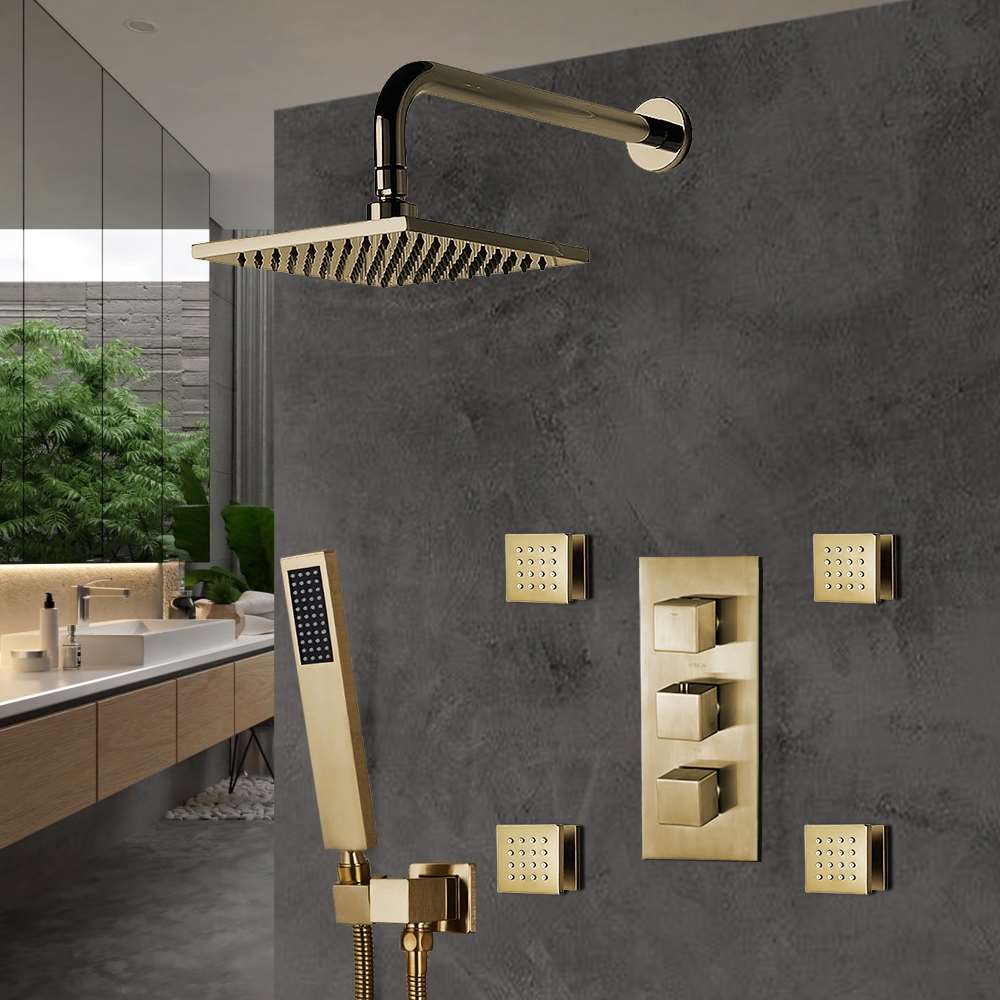

Fontana Brushed Gold Thermostatic Concealed Shower Set
Pressure Coordination Restored
Simultaneous spray-zone testing revealed a temporary pressure offset. Adjusting the internal flow routing restored balanced discharge across the active outlets, after which rainfall consistency remained stable through continuous residential evaluation. The concealed brushed-gold configuration responded predictably once balanced.View Gold Shower Set →
Gold Shower Technology Matrix
| Product | Configuration | Professional | Rating | Field Focus |
|---|---|---|---|---|
| FS147BG-SH | Brushed Gold · LED · Rainfall | Weston Brooks, Consultant | 5/5 | Balanced Rainfall Output |
| FS8055GL | Gold · Digital · Touch Control | Vertex Build Group | 5/5 | Digital Control Integration |
| FS8047BG | Brushed Gold · Digital · Touchscreen | Sterling Habitat Designers | 4/5 | Smooth Premium Installation |
| FS8021BG | Brushed Gold · Spa · Body Jets | PrimeAxis Developments | 4/5 | Balanced Spa Performance |
| FS1052 | Brushed Gold · Waterfall + Rainfall · Thermostatic | Sawyer Carter, Contractor | 4/5 | Waterfall Pressure Balance |
| FS1080 | Brushed Gold · Thermostatic · Concealed | Mason Blake, Plumber | 4/5 | Pressure Coordination Restored |
